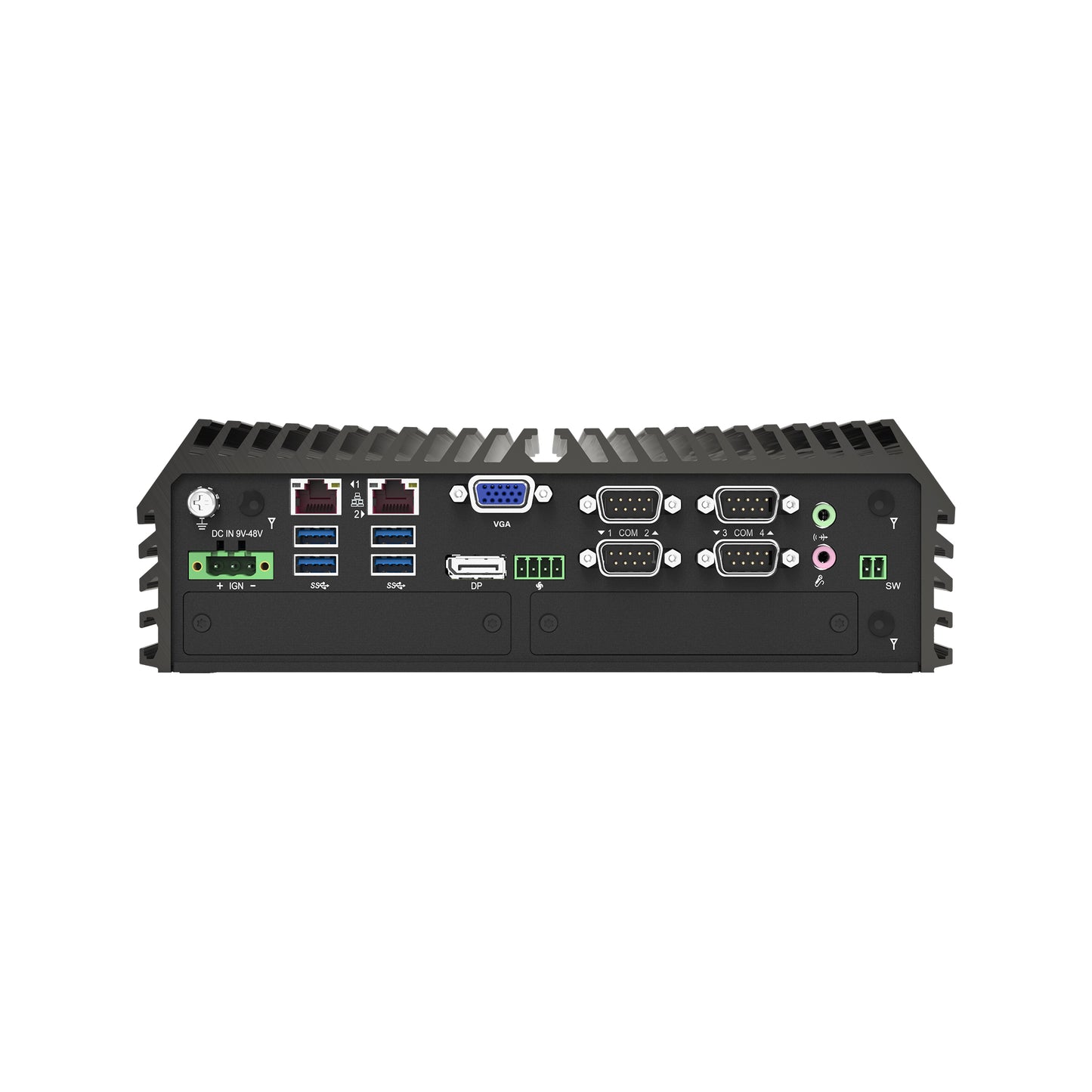

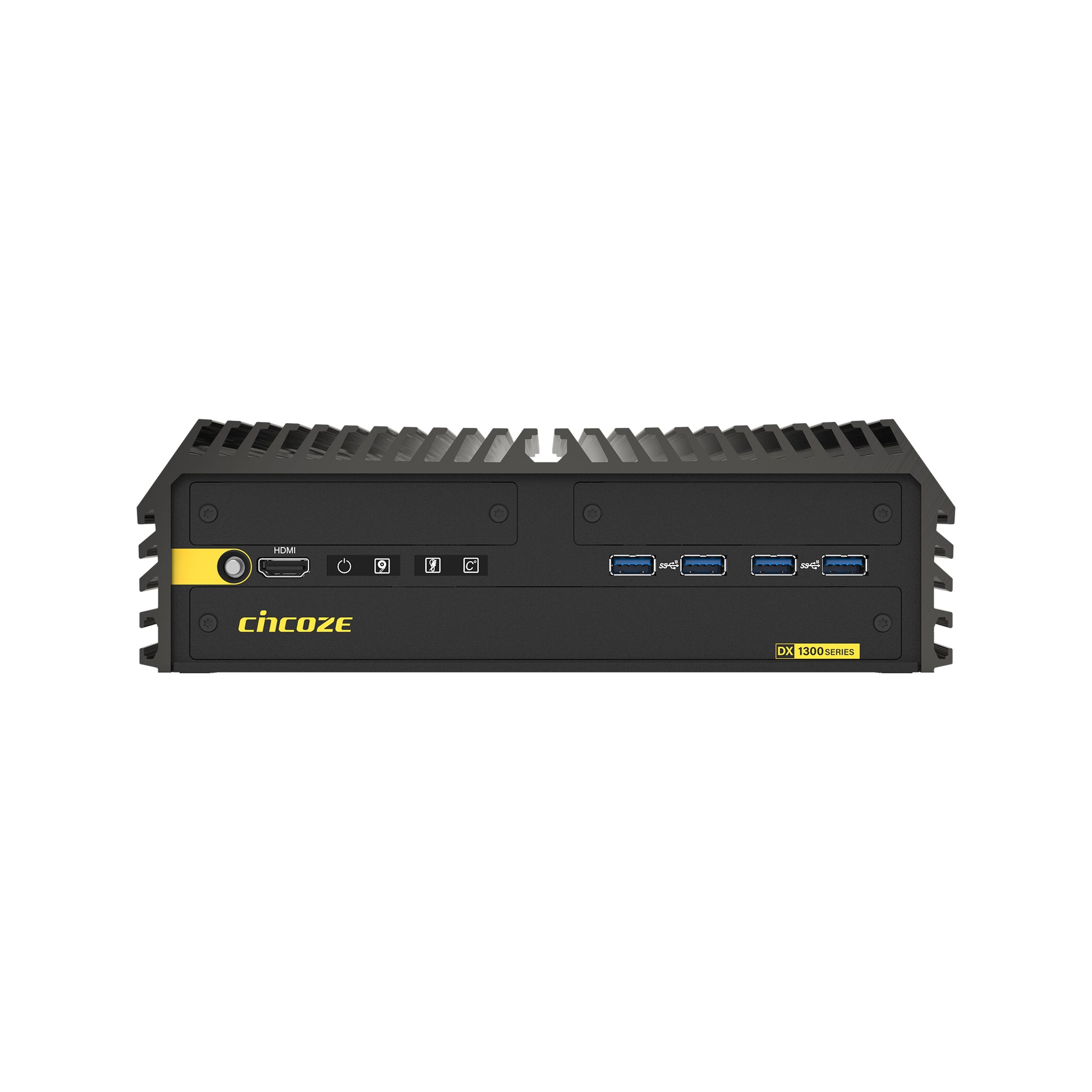

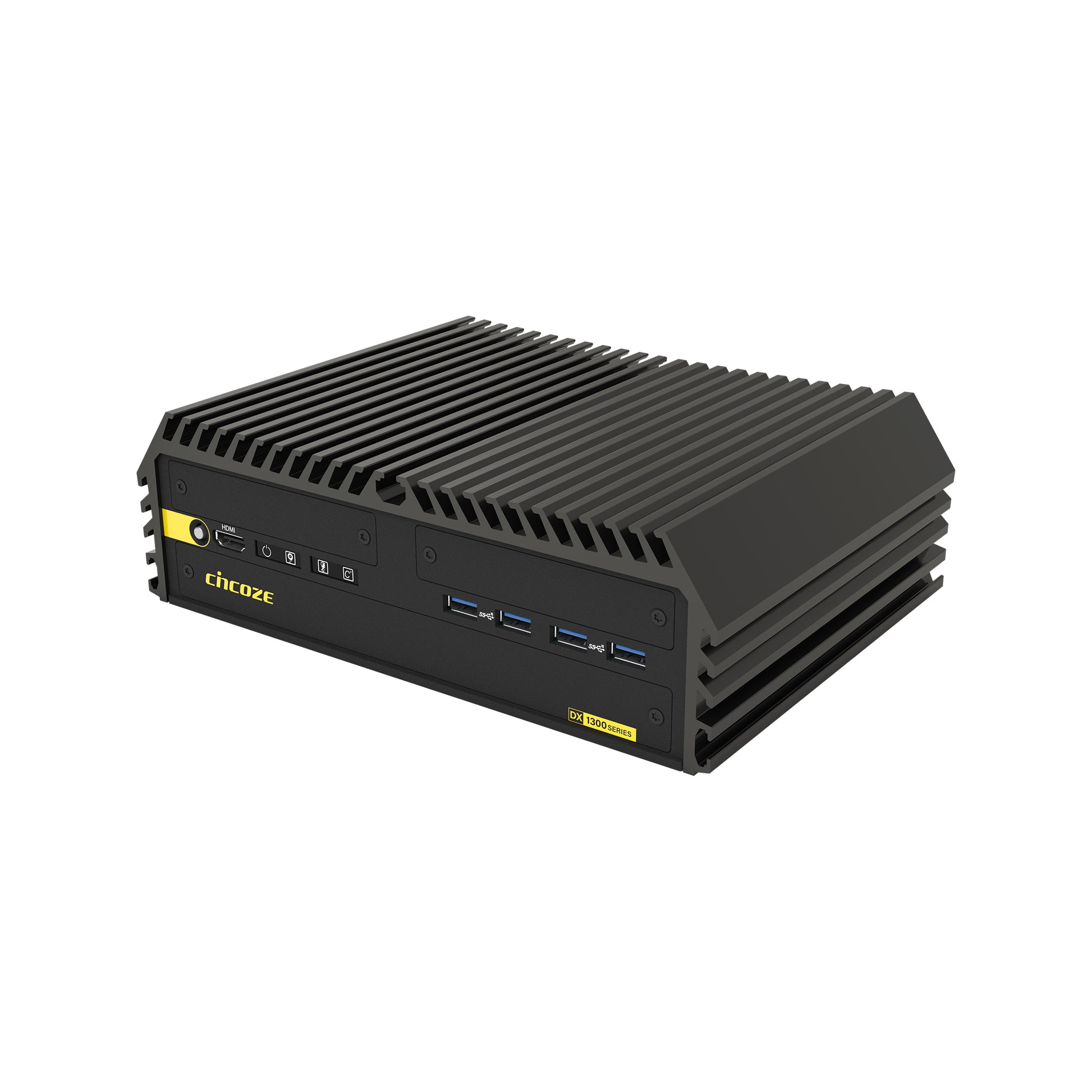

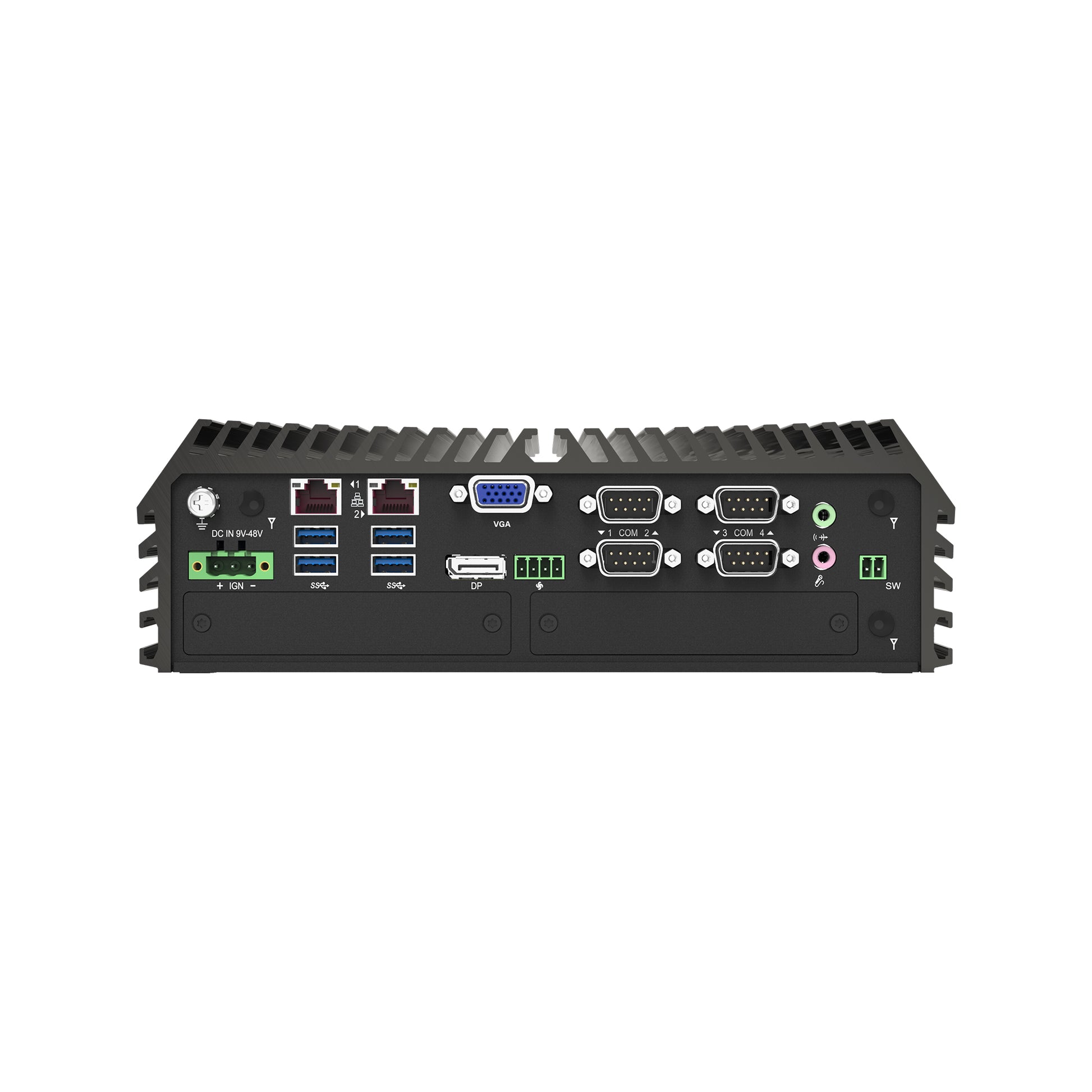

Cincoze DX-1300 Industrial PC
Cincoze DX-1300 Industrial PC
SKU:DX-1300
The Cincoze DX-1300 is a compact industrial computer engineered for high-performance edge computing. Powered by Intel® Arrow Lake-S Core™ Ultra 200S series processors, it supports demanding edge applications, including advanced image processing, AI inference, and data integration across multiple tasks. The DX-1300 series packs exceptional computing performance and a rich feature set into a compact chassis while maintaining industrial-grade ruggedness. It is particularly well-suited for high-performance applications with limited installation space, and has earned high acclaim in the manufacturing, in-vehicle, and railway markets.
- Intel® Arrow Lake-S Core™ Ultra 200S CPU, up to 36 TOPS (Max 65W TDP)
- 2x DDR5 SODIMM/CSODIMM sockets, up to 6400MHz, 96GB
- Wide operating temperature range (-40°C to 60°C)
- Fanless, rugged design compliant with MIL-STD-810H, EN 50121-3-2, and EN 45545
- Optional CMI modules for I/O expansion and CFM modules for hardware TPM, ignition sensing + PoE
- Compact chassis (242 x 173 x 75mm), footprint comparable to an 11-inch iPad
Specs Overview
Specs Overview
| Processor(s): | Intel® Core™ Ultra (Series 2) [Arrow Lake] |
| Max Memory: | 96GB |
| Storage: | (2) 2.5″ SATA HDD/SSD Bay (SATA 3.0) (1) M.2 SSD shared by M.2 B Key Type 2242 |
| Temp Range: | -40°C – 60°C |
| Input Voltage: | 9–48V DC |
| Cooling Type: | Passive |
| Connectivity: |
|
| Certifications: |
|
| Mounting: |
|
