Cincoze DS-1500 Industrial PC

Cincoze DS-1500 Industrial PC

DS-1500

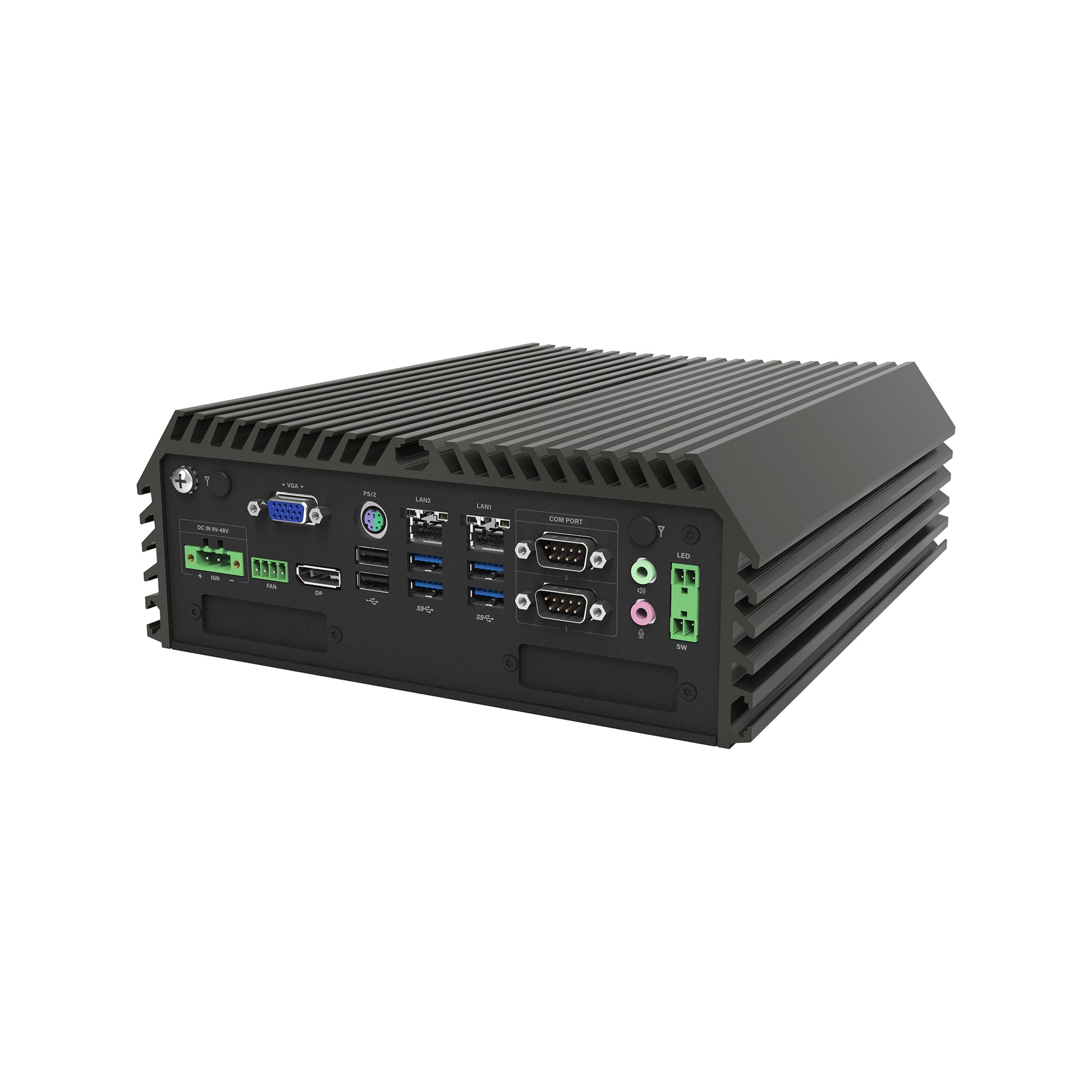

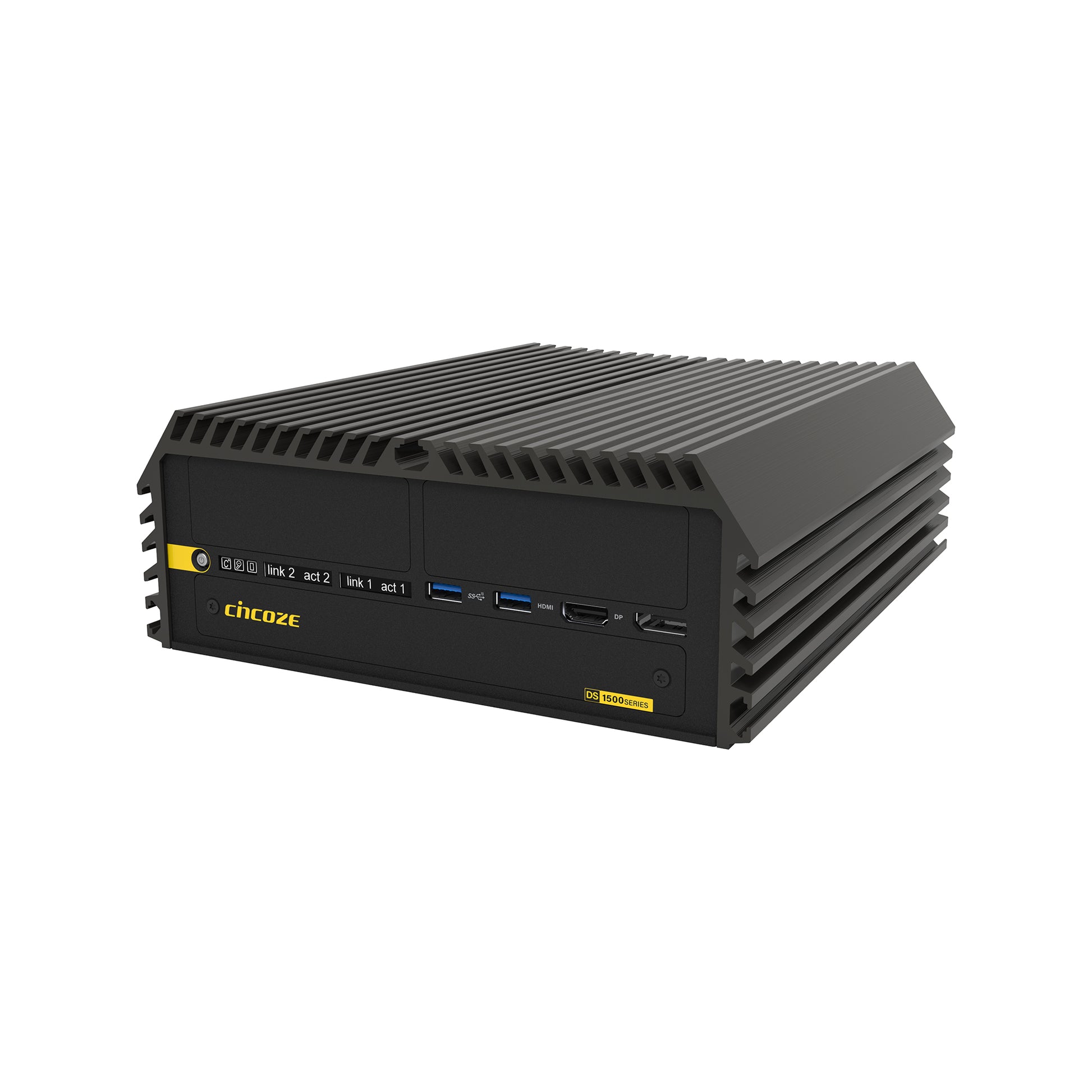

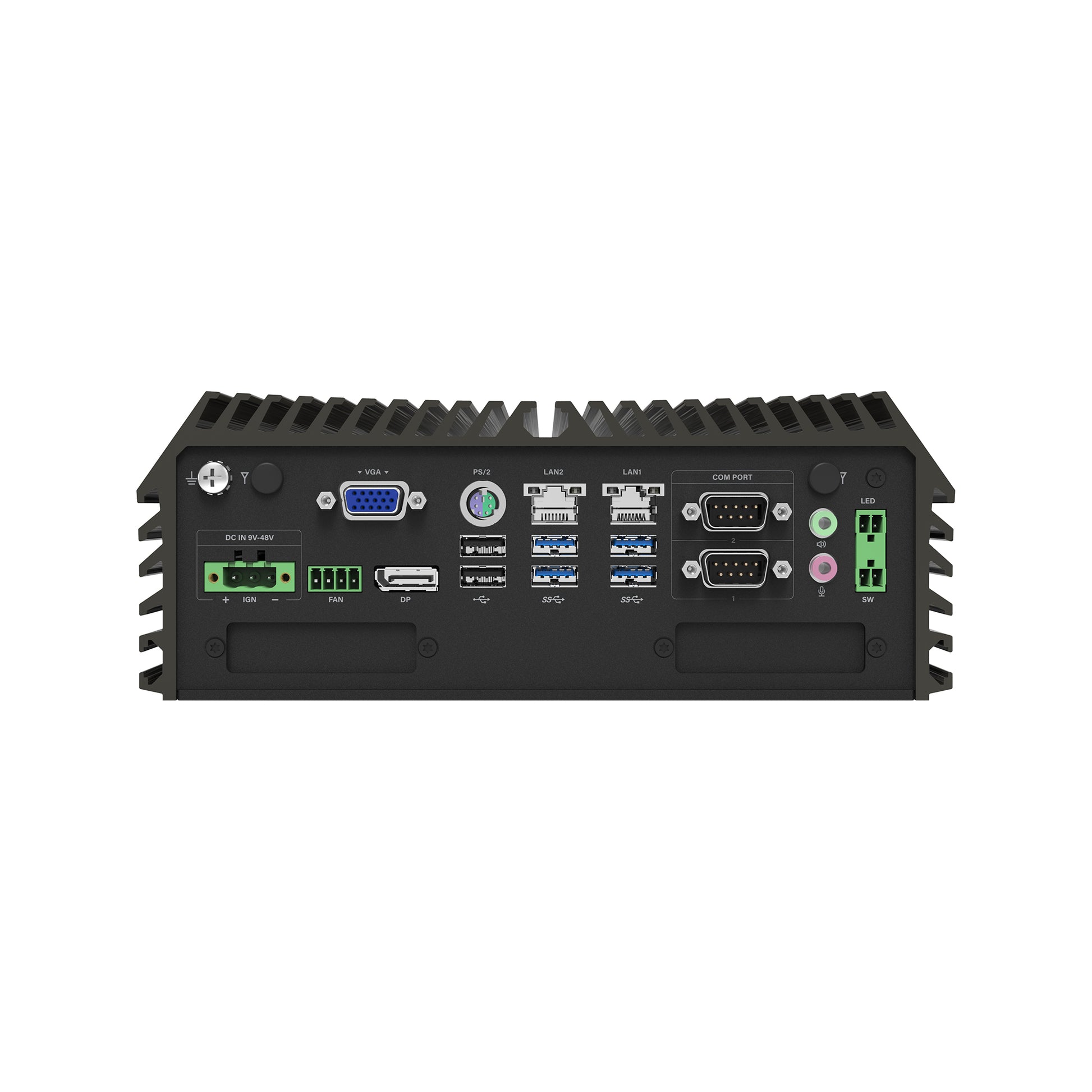

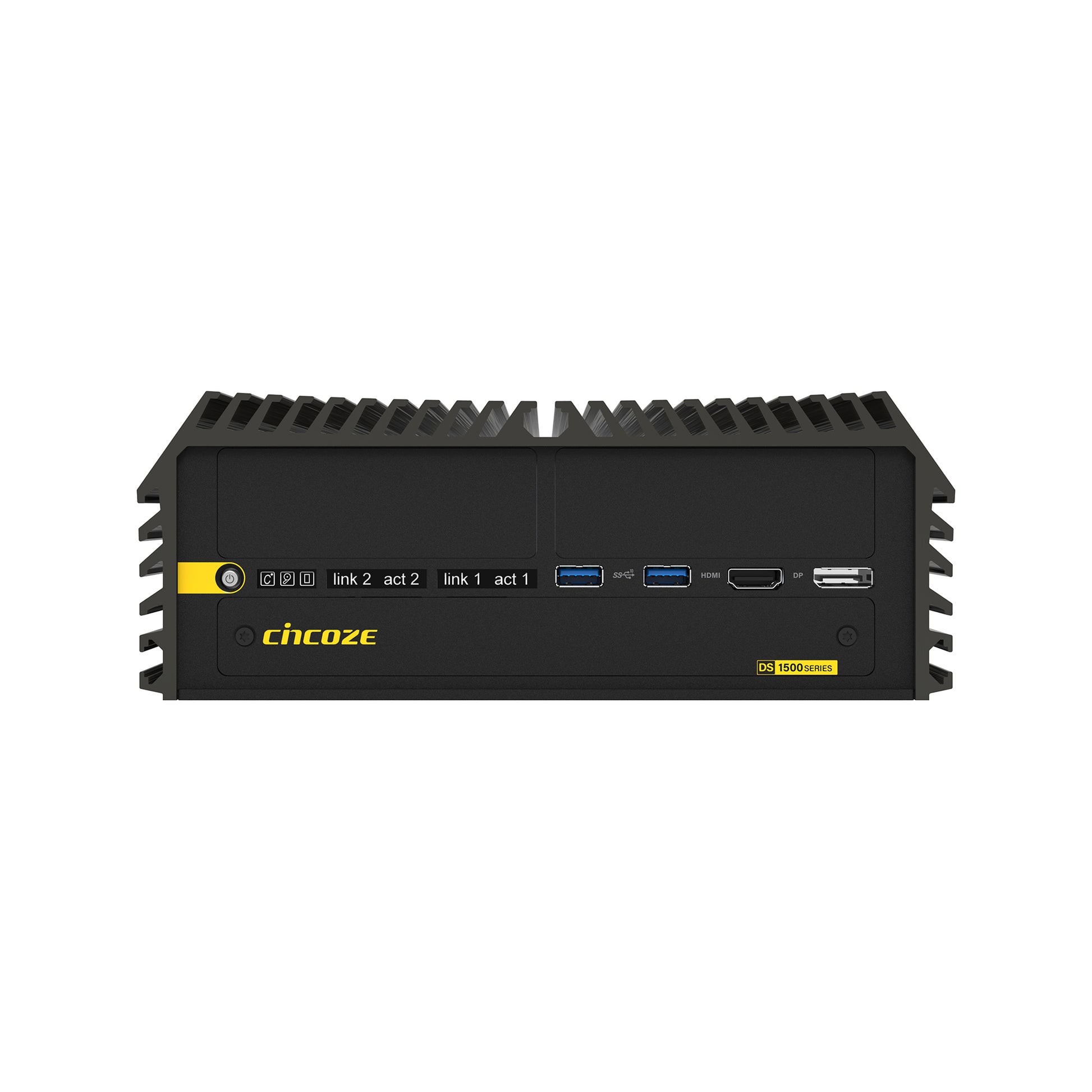

The Cincoze DS-1500 series is a high-performance, expandable, rugged embedded computer, supporting modular I/O expansion and up to two PCI/PCIe slots. It has international certifications for stable and reliable performance in harsh environments, making it perfect for smart manufacturing, railway, and more.

  • Intel® Arrow Lake-S Core™ Ultra 200S CPUs, up to 36 TOPS (Max 65W TDP)
  • 2x DDR5 SODIMM/CSODIMM sockets, up to 6400MHz, 96GB
  • 2x PCI/PCIe expansion slots, up to 130W expansion (DS-1502), with patented adjustable card retainer for high-vibration environments
  • Optional CMI modules for I/O expansion and CFM modules for hardware TPM, ignition sensing + PoE
  • Wide operating temperature range (-40°C to 60°C)
  • Rugged design compliant with MIL-STD-810H, EN 50121-3-2, and EN 45545-2

Specs Overview

Processor(s): Intel® Core™ Ultra (Series 2) [Arrow Lake]
Max Memory: 96GB
Storage: (2) 2.5″ SATA HDD/SSD Bay (SATA 3.0) (1) M.2 SSD via M.2 Key M 2280 (PCIe Gen3x4) (3) M.2 Key B 3042/3052 (5G/GNSS/Storage)
Temp Range: -40°C – 60°C
Input Voltage: 9–48V DC
Cooling Type: Passive
Connectivity: 5G
Certifications:
  • UL
  • MIL-STD-810
Mounting: Wall
