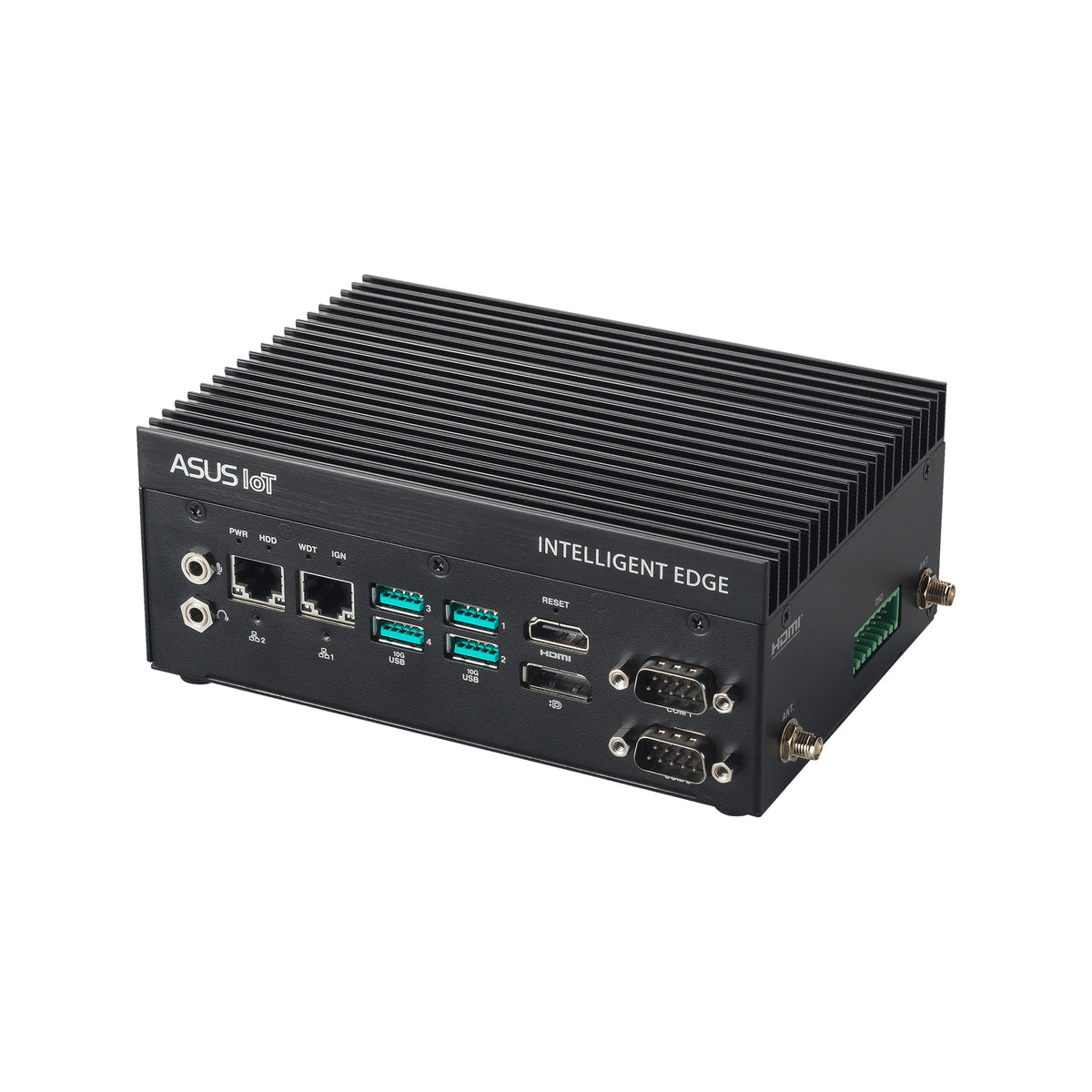

ASUS PE1000U Industrial PC
ASUS PE1000U Industrial PC
SKU:PE1000U
The ASUS PE1000U is an ultra-compact, rugged fanless DIN-rail computer built around the Intel® Core™ Ultra processor (Series 2). Despite its compact footprint, it delivers rich I/O and expansion capacity — including up to (4) LAN, (4) USB, and (4) COM ports — making it well-suited for space-constrained industrial and edge deployments that still demand desktop-class processing power.
- Intel® Core™ Ultra processor (Series 2), with up to 64GB DDR5
- Rich I/O, up to (4) LAN, (4) USB, and (4) COM
- Rich expansion capacity including DIO / LAN ports
- Wide voltage range: 9–36V
- Wide operating temperature range: -25°C – 70°C*
- Onboard (2) CANBUS 2.0
Specs Overview
Specs Overview
| Processor(s): | Intel® Core™ Ultra (Series 2) [Arrow Lake] |
| Max Memory: | 64GB |
| Storage: | (1) 2.5″ SATA SSD, (1) M.2 2280 M-Key (NVMe SSD, PCIe x4) |
| Temp Range: | -25°C – 70°C |
| Input Voltage: | 9–36V DC |
| Cooling Type: | Passive |
| Connectivity: | 5G |
| Certifications: | MIL-STD-810 |
| Mounting: |
|
